The high-performance 4-layer high-frequency high-speed PCB is a printed circuit board designed for high-speed data transmission, suitable for electronic devices that require fast and stable data exchange.
Product Overview
The high-performance 4-layer high-frequency high-speed PCB is a printed circuit board designed for high-speed data transmission, suitable for electronic devices that require fast and stable data exchange. The product adopts advanced manufacturing technology and high-quality materials to ensure high speed and high stability of signal transmission, and is an indispensable core component in modern electronic devices.
Product Features
1. High-speed data transmission: specially designed for high-speed data transmission to ensure fast and stable signals.
2. Multi-layer structure: 4-layer structure design to optimize signal integrity and power distribution.
3. High-quality substrate: FR-4 TG170 substrate is used to provide excellent electrical performance and mechanical strength.

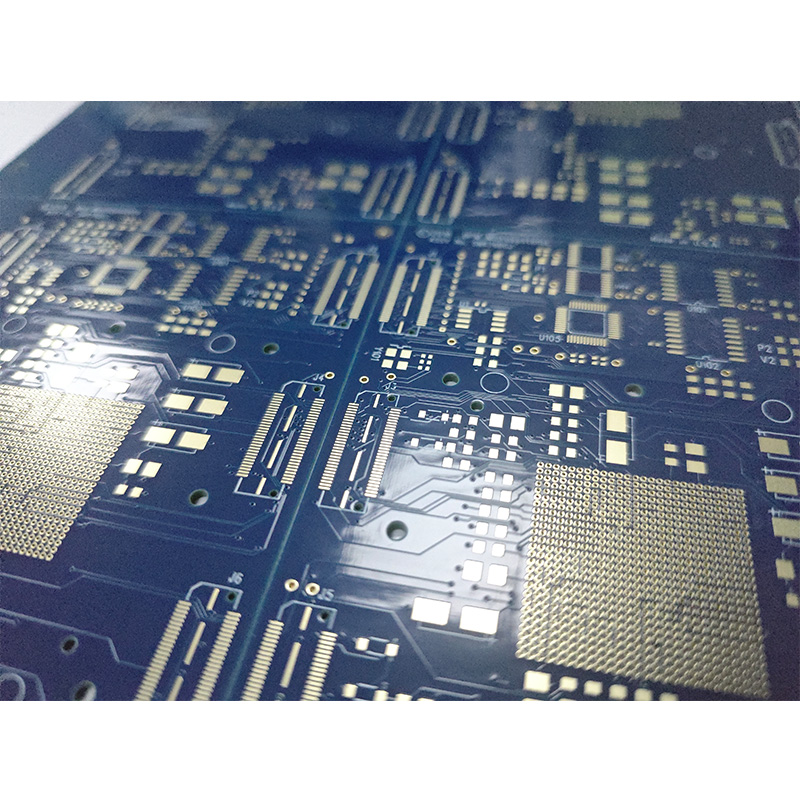

4. Fine manufacturing: solder mask blue oil white text, providing clear visual identification and protection.
5. High reliability: immersion gold surface treatment, enhanced corrosion resistance and long-term reliability.
Technical Specifications
| Number of layers | 4 layers | Ink color | Blue oil white characters |

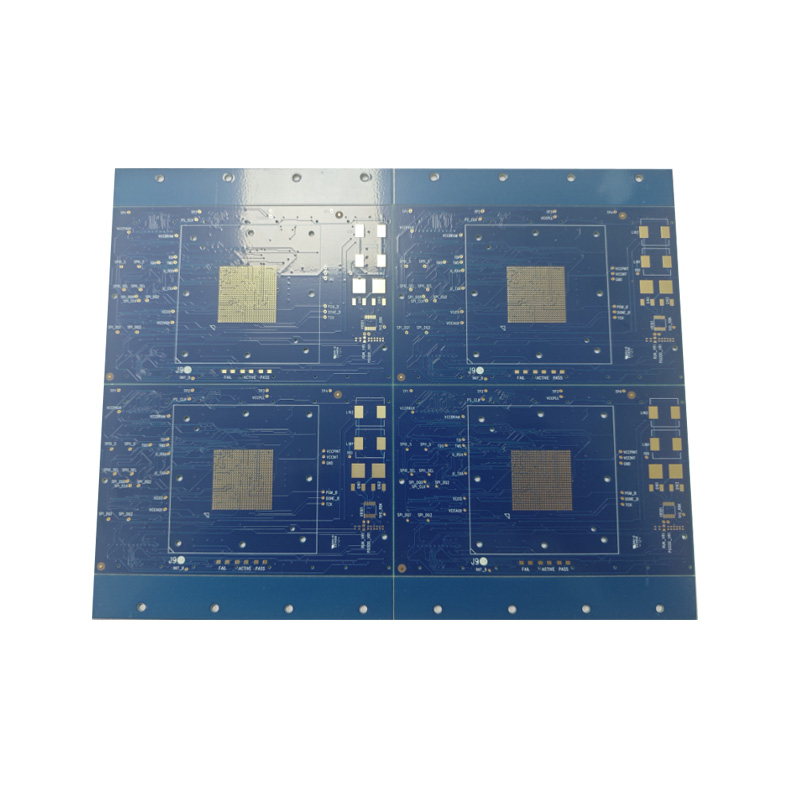

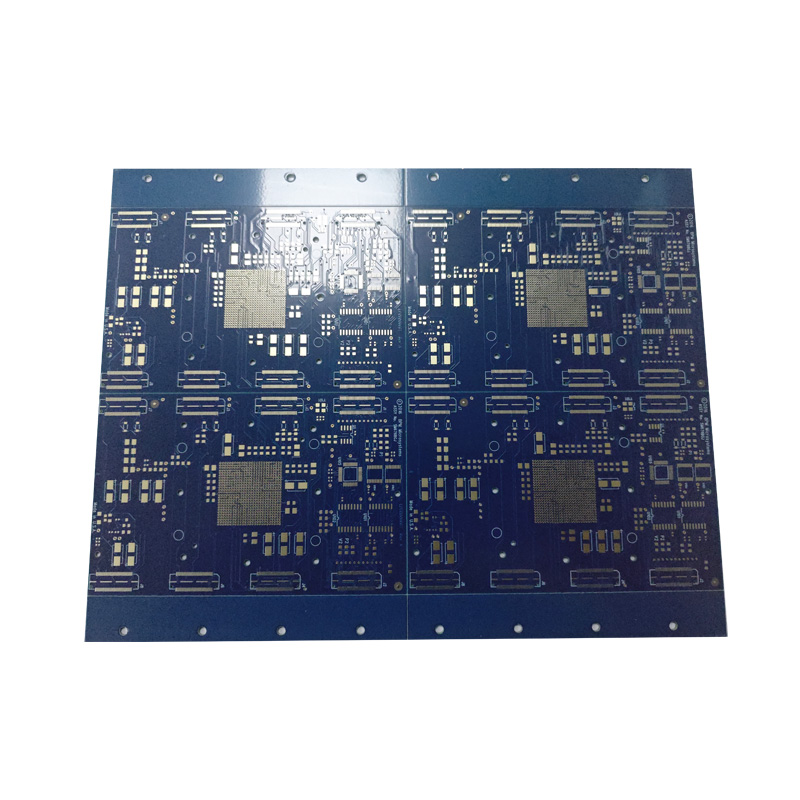

| Raw materials | FR-4 TG170 | Connection method | 1Panel=2x2Pcs |
| Thickness | 1.65mm | Is there solder mask? | Blue oil white characters |
| Copper thickness | 1OZ/1OZ | Surface treatment method | Immersion gold treatment |
Application Areas
Communication equipment: such as base stations, switches, routers, etc.
Computers and servers: used for motherboards, storage devices, etc.
Industrial control: used for automatic control systems, sensors, etc.
Consumer electronics: such as smart phones, tablets, etc.
Special Production Processes
1. High-precision manufacturing technology: ensure the accuracy of the minimum line width/line spacing and improve signal transmission efficiency.
2. Lamination technology: ensure the stability and consistency of the multi-layer structure.
3. Solder mask technology: use blue oil white characters to improve the readability and protection performance of the PCB.
4. Immersion gold process: improve the corrosion resistance and welding reliability of the PCB.
Product Summary
High-performance 4-layer high-frequency and high-speed PCB has become an ideal choice for high-speed electronic devices with its excellent performance and reliability. Our product design takes into account the strict requirements of modern electronic equipment for speed and stability. By using high-quality materials and advanced production processes, we ensure the high performance and long-term durability of the products. Whether in the field of communications, computers, industrial control or consumer electronics, our PCB is your trusted partner.
FAQ
Q: Are the materials you use environmentally friendly?
A: The materials we use are in accordance with ROHS standard and IPC-4101 standard.
Q: When can I get a quotation after I provide Gerber, product process requirements?
A: Our sales staff will give you a quotation within 1 hour.
Q: What problems can impedance mismatch in HDI high-frequencyPCB cause?
A: The impedance of transmission lines on the PCB not matching the output impedance of the signal source or driver can lead to signal reflection, crosstalk, and signal integrity issues.
Q: Can you provide samples?
A: We have the ability to quickly proof-sample PCB and provide comprehensive technical support.
